Production & Casting process Chandeliers
Traditional Dutch Brass Chandeliers
Brink & van Keulen still practices this craft exactly as they used to in 1646. Original molds from that time are used to make the brass parts. Casting is still done in the traditional way: in Brussels soil, a greasy type of sand.
This is followed by manual grinding, sanding and polishing until each part has a brilliant, golden-yellow sheen. Over a hundred authentic models are possible using this craft, with spans of up to 250 cm, with the largest specimens weighing more than 300 kilograms.
These heavier versions have acquired a worldwide reputation in the past 60 years. In many palaces, churches and museums they are the shining centerpiece.Contact Us

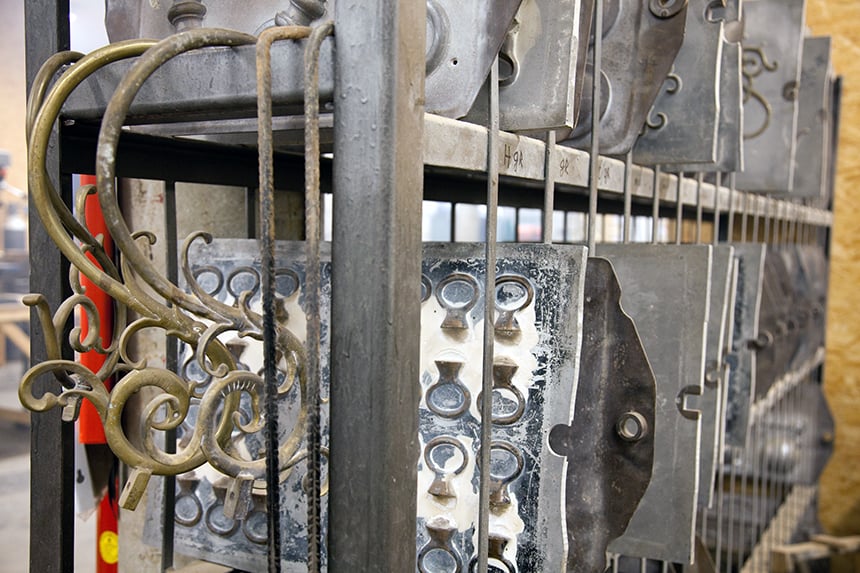

Brass crowns consist of several parts, such as the arms, the stem and the sphere. These separate parts are cast with liquid brass in moulded sand. To be able to cast in sand, models (casting moulds) are needed.

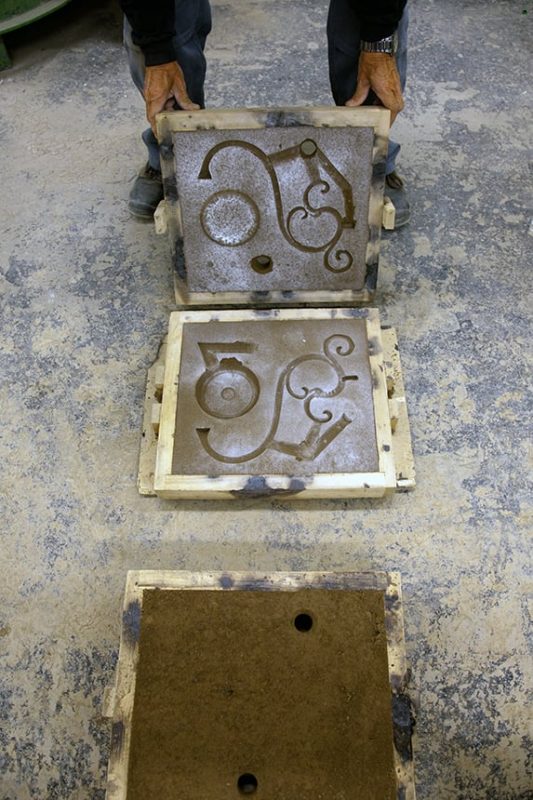

A special type of sand is used for casting, Brussels earth. Brussels soil is a mixture of greasy soil and clay, also known as yellow loam or sulphur. With a casting mould, the shape to be cast is pressed into the sand, which is contained in a casting box.
Casting cabinets for large spheres are first left to rest for a few days in order to dry the moist moulding sand. Sometimes antique models are copied whereby the original model is pressed into the Brussels soil as a mould. After the lower and upper cases have been placed on top of each other, two weights of 25 kilos each are put on the cases. This weight is used to prevent the cabinets from swelling during the casting process.
For casting brass is used. The composition of this alloy is 65% copper with 35% zinc. The brass is delivered in so-called loaves. The brass loaves are melted in a crucible furnace.
If the brass is liquid, it should be poured quickly. If the temperature rises too high, too much zinc in the alloy will burn away.

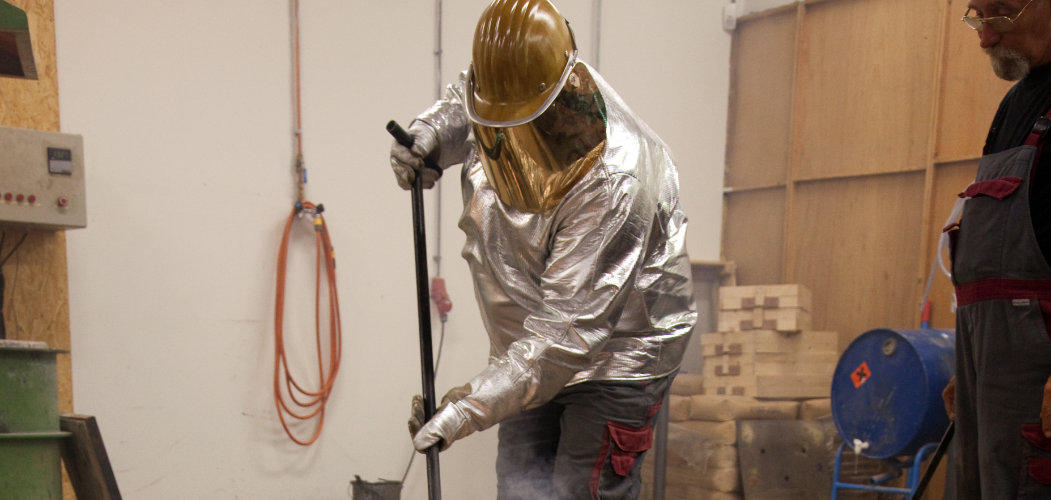

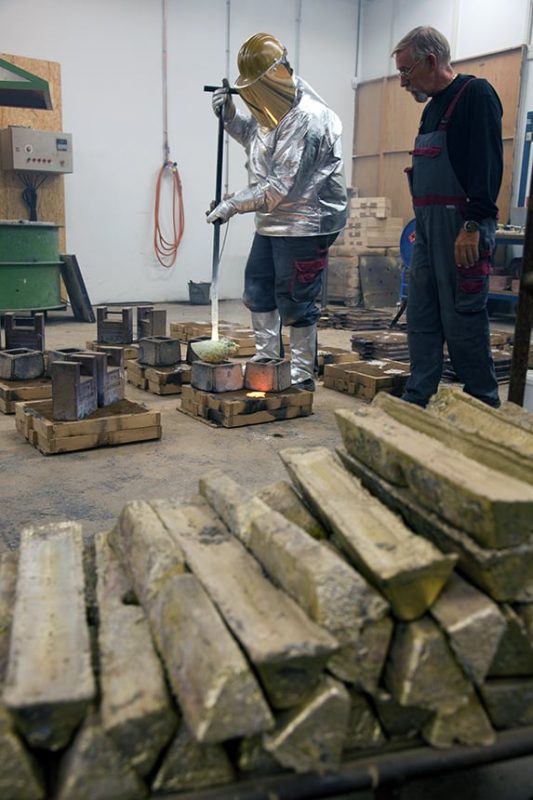

Then, using a metal spoon, the liquid brass is scooped out of the furnace and poured into the filling opening of the casting box.

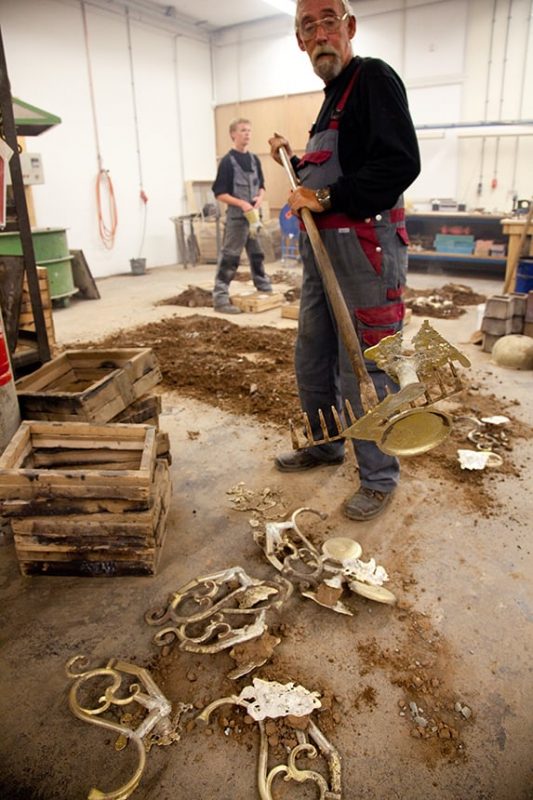

After about 20 minutes, the two parts of the cabinet are taken apart. The rough model, the casting, is taken out of the sand to cool down. There is still a lot of work to be done to make this casting beautiful.
After casting, the Brussels soil is scooped up and mixed with water. The soil can then be used again for the next casting process.
When the casting has cooled down, the runners can be sawn off. The rough casting is then visible. Then the burrs are removed from the casting. The pure round parts of the crown, such as the parts of the stem, are mounted on a lathe to remove the burrs and the casting skin on sight. Because of this proces the parts are never perfectly identical.
Afterwards, parts that are not easy to smooth such as arms etc. are drummed in a rotating drum for 24 hours. The drum is filled with small polishing stones which smoothen the surface. With large brass arms the parts are soldered together. The brazing method with silver is used.
All finished parts of the crown are ground and polished until the final result is mirror-smooth. Grinding is done with a belt sander. When polishing by hand, polishing grease is used.
If desired, all parts of the crown can be varnished separately. All parts must be degreased before varnishing. This varnishing is done by spraying the individual parts with varnish. The varnish used must be somewhat flexible. If the varnish is too hard, it will crack and oxidation may quickly occur.
After varnishing the crown, the parts are assembled. Large crowns are assembled on site before hanging. Small crowns are assembled in the workshop.
First the trunk is mounted with the brass ball at the bottom. Finally, the arms are mounted on the crown, each at a specific location on the crown. Identical marks are placed on the arm and the place on the stem where the arm is mounted.
The arms of electric crowns are bent from hollow brass tubes. The curls are soldered to the arms. When assembling these crowns the electrical wiring and lighting elements are added at the same time and are made invisible.
Brink & van Keulen 1646 B.V. Originally a family business, Brink & van Keulen maintains the 17th-century foundry craft by producing the highest quality brass chandeliers. By passing on centuries-old knowledge, Brink & van Keulen has taken an important role in the preservation of the foundry craft. Brink & van Keulen is specialised in the field of production, restoration, valuation, and mediation of traditional Dutch brass chandeliers.
Every Old Dutch chandelier needs attention over time to look as good as possible. If you own an Old Dutch chandelier and would like to have it cleaned, restored or repaired, Brink & van Keulen can be of service. Read more
You can equip your chandelier with electric LED candle lights. Not only will you save up to 70% of energy, but it will also give you greater user convenience and a long service life. You don't have to light the candles one by one anymore, just use a light switch. Read more
Brass chandeliers are subject to the environment, light and oxygen. Thus these natural elements (air) affect the chandelier over the years and cause the brass to darken. Brink & van Keulen is able to renew old brass chandeliers that are in a poor condition. Read more
The worldwide network of our partners enables us to facilitate the purchase and sale of chandeliers. Via the online platform, we offer chandeliers to churches, antique dealers, and consumers. Read more
For centuries, historic buildings have been equipped with chandeliers and wall sconces. As a beautiful embellishment, but also because it is an optimal light source tailored to a room. Each part in a chandelier has its function:
